PRODUCT DESCRIPTION

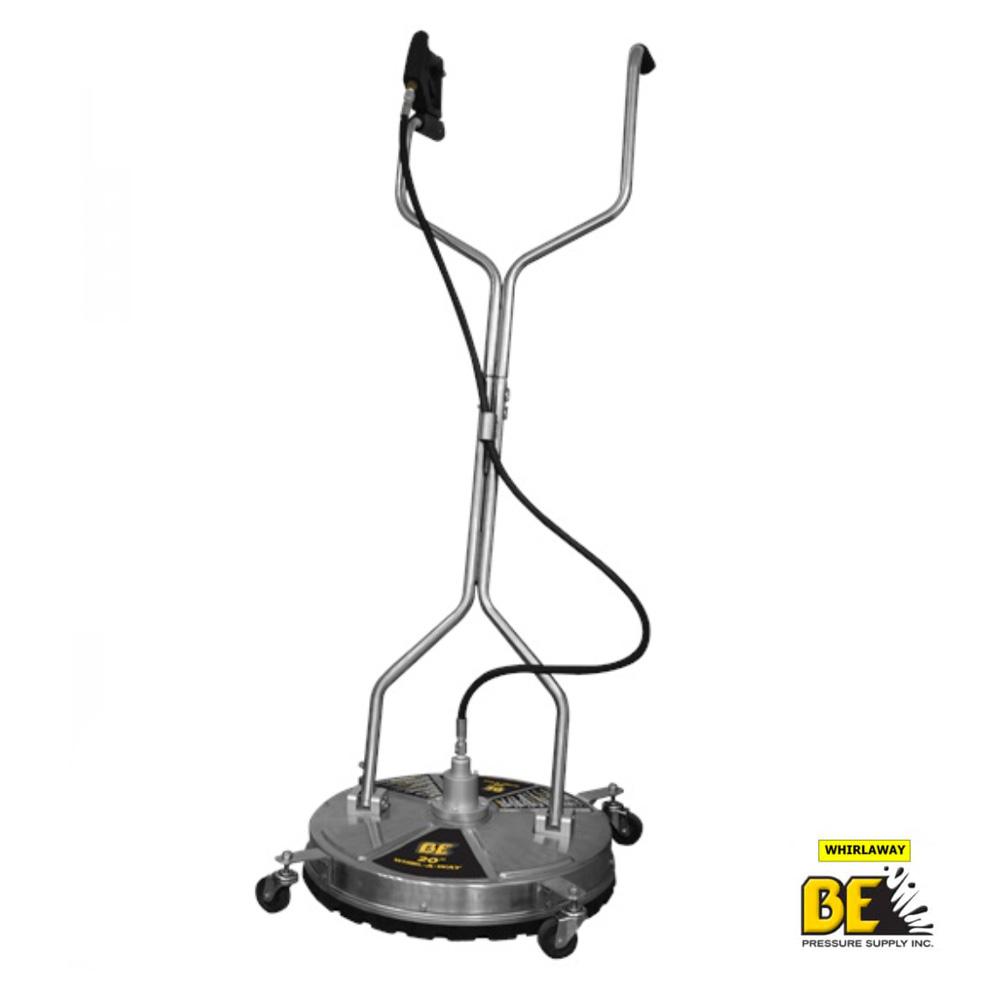

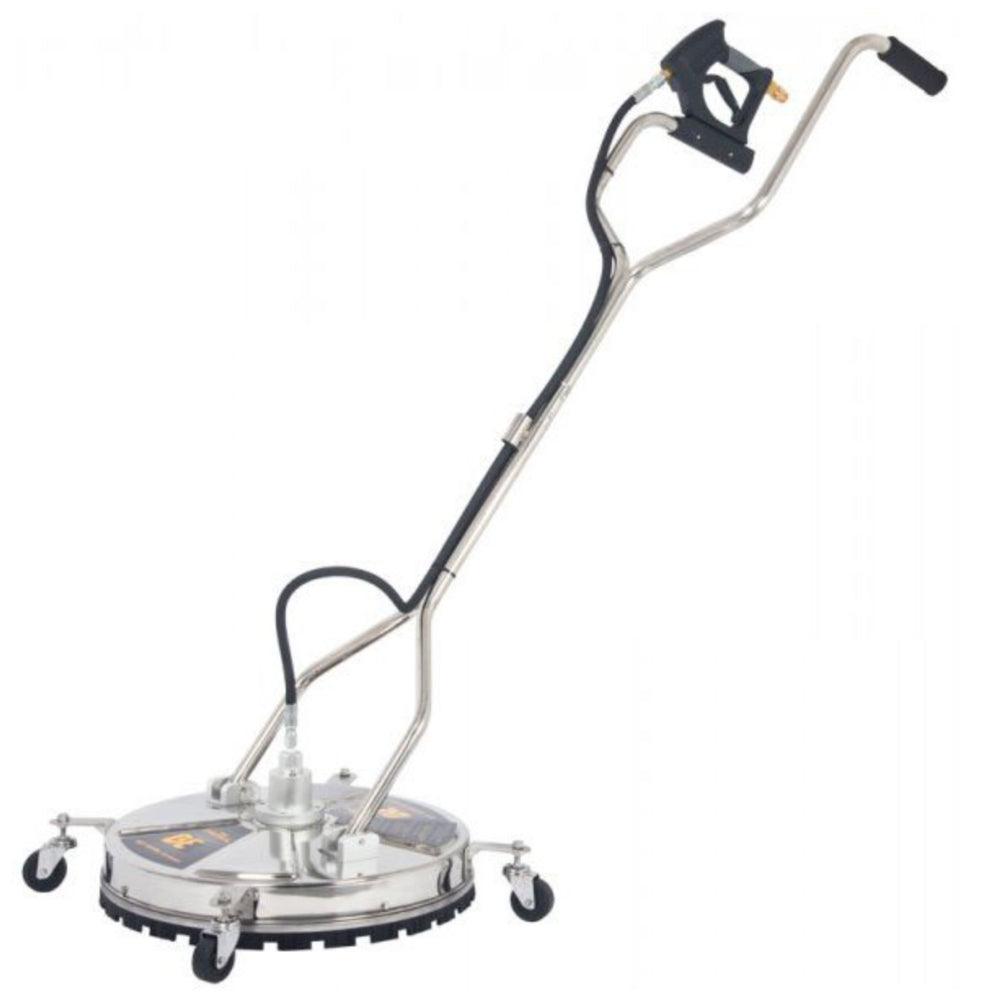

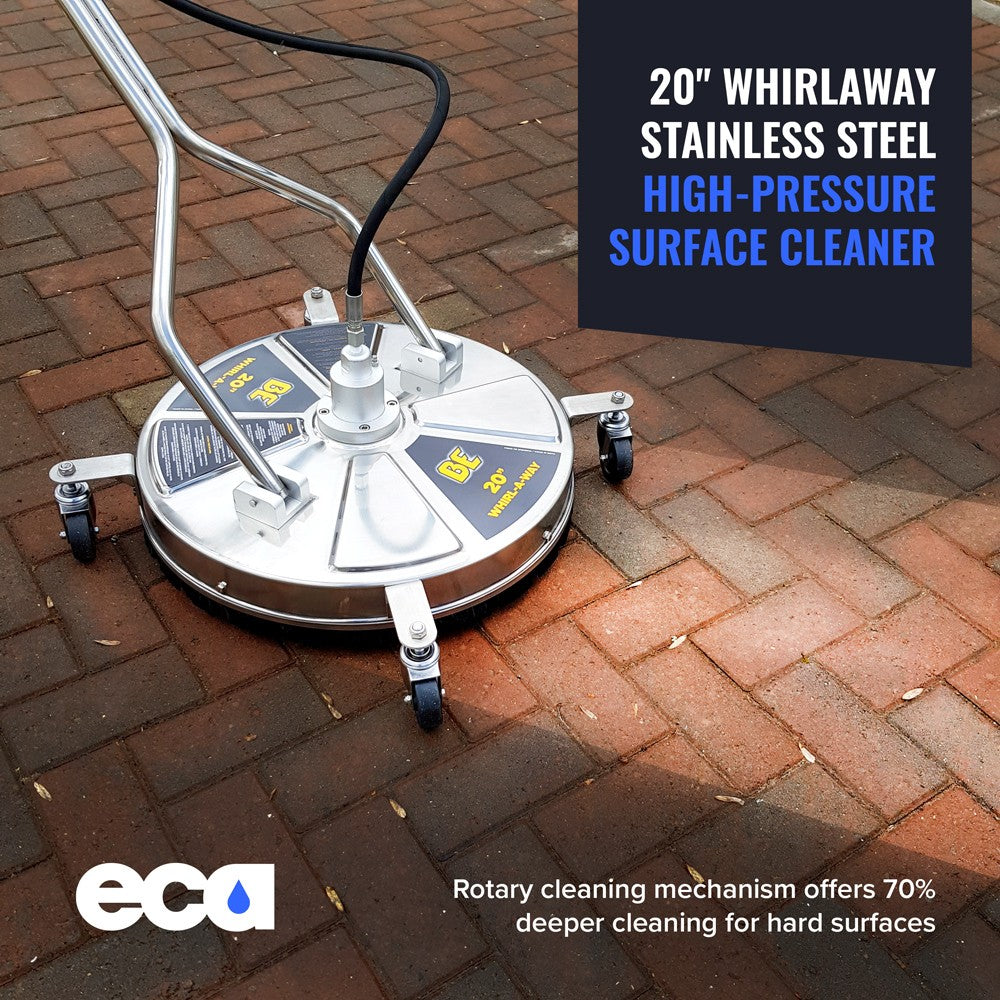

A POWERFUL ROTARY 20" STAINLESS STEEL FLAT SURFACE CLEANER
Whirlaway is the latest innovation in high-pressure surface cleaning. The BE Whirlaway range is designed for the Professional Cleaning Industry for use on large spaces. The 20" Whirlaway offers an exceptional cleaning capacity, resulting in time and labour savings of up to 80%.
The flat surface cleaner uses a pressurised rotary mechanism to offer 70% deeper cleaning for hard and soft surfaces such as patios, driveways, tarmac and decking. They can be used with any hot water or cold water with the correct water flow and pressure output.
The Original 20" Whirlaway Flat Surface Cleaner is a brilliant tool to help you clean surfaces evenly and quickly. Increasing cleaning efficiency, this is ideal for professional cleaners.
SPECIFICATIONS
- 276 Bar Max Pressure
- 30 Lpm Maximum Flow Rate

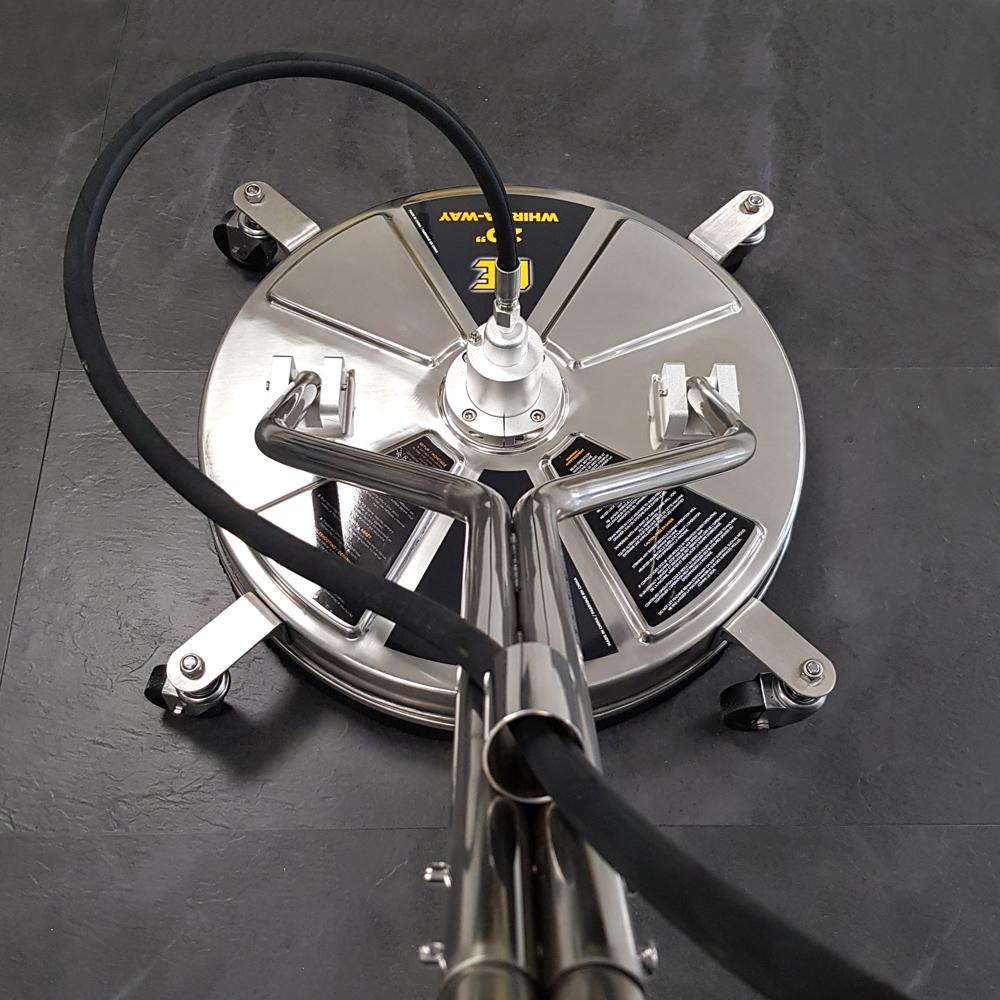

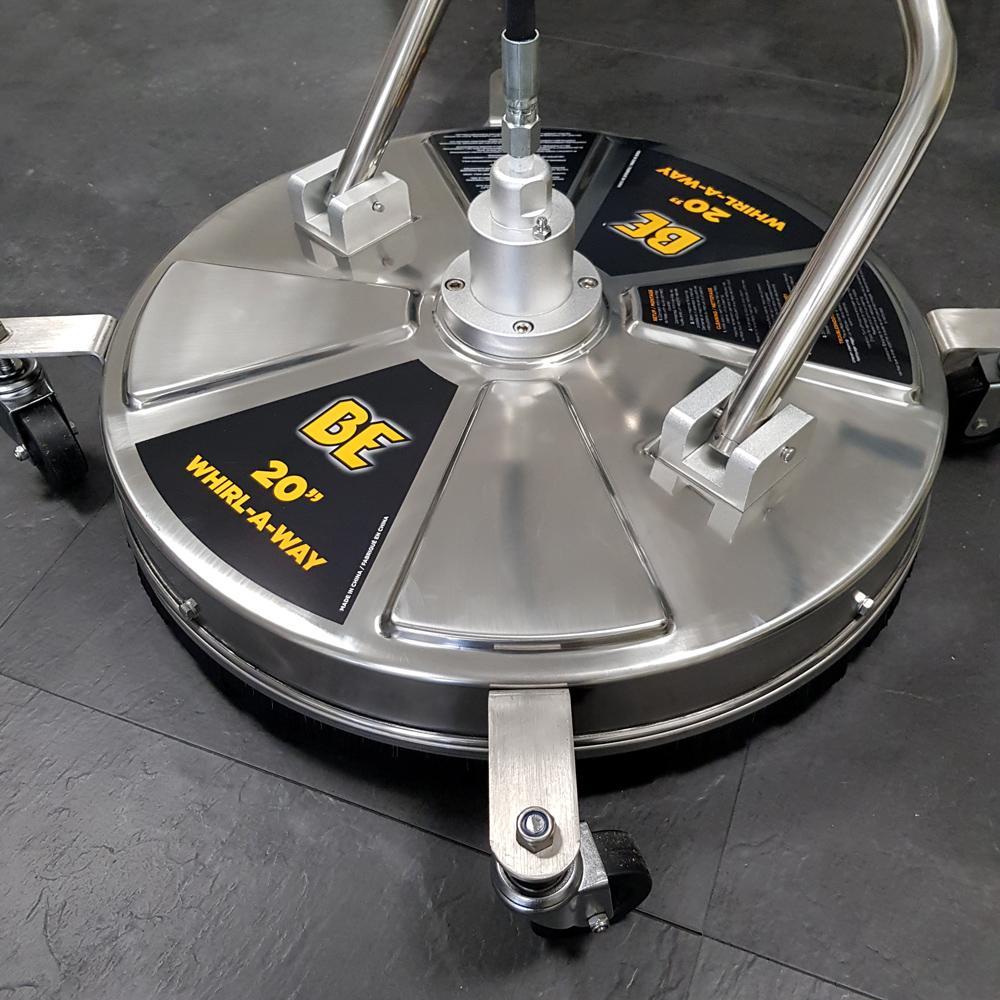

- 20" Stainless Steel cover

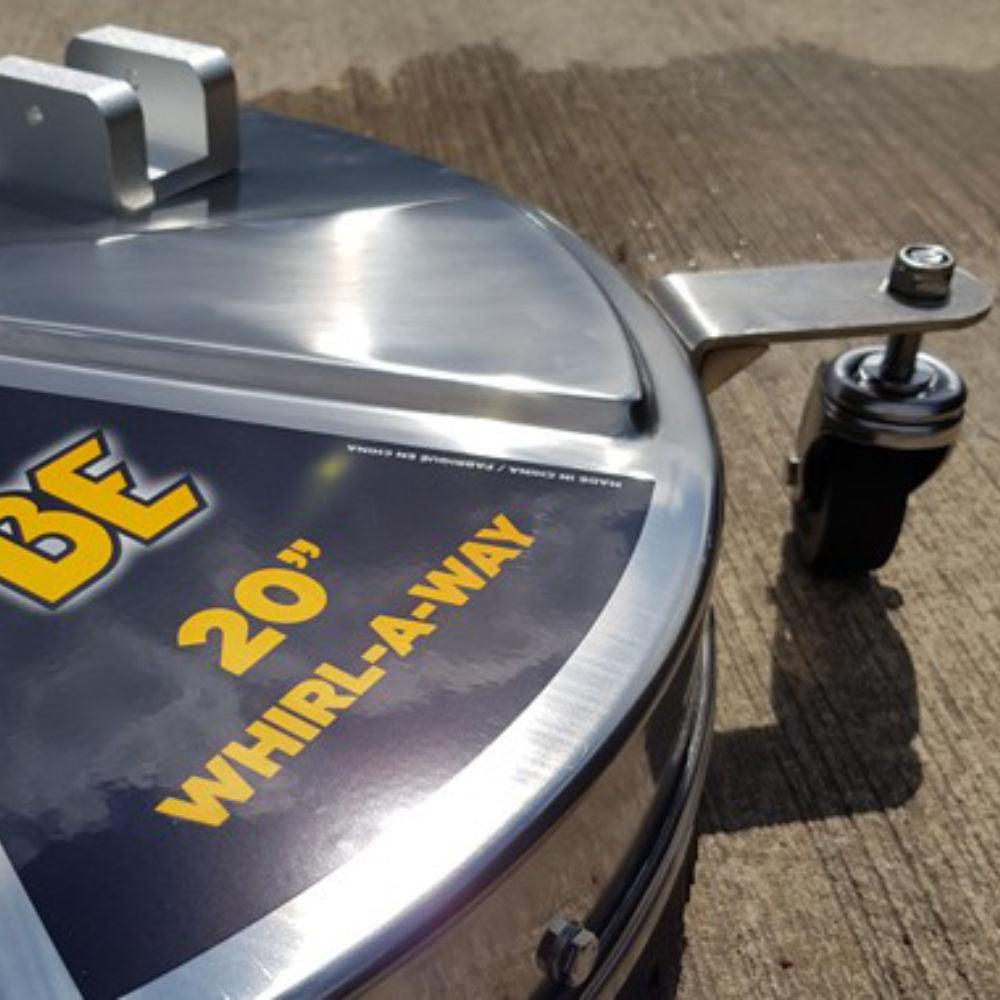

- On 4 durable caster wheels
- Zero wall clearance
- 80°C max operating temperature

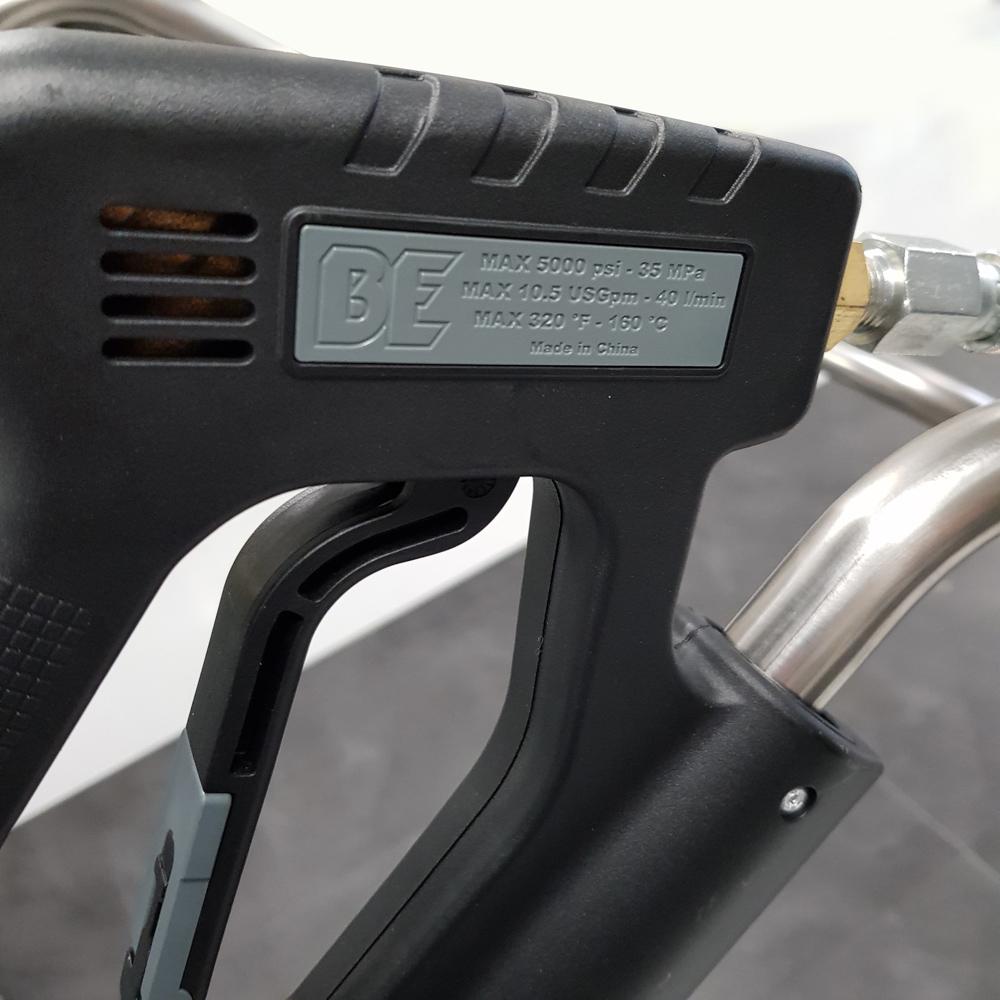

- Trigger gun, 3/8F inlet

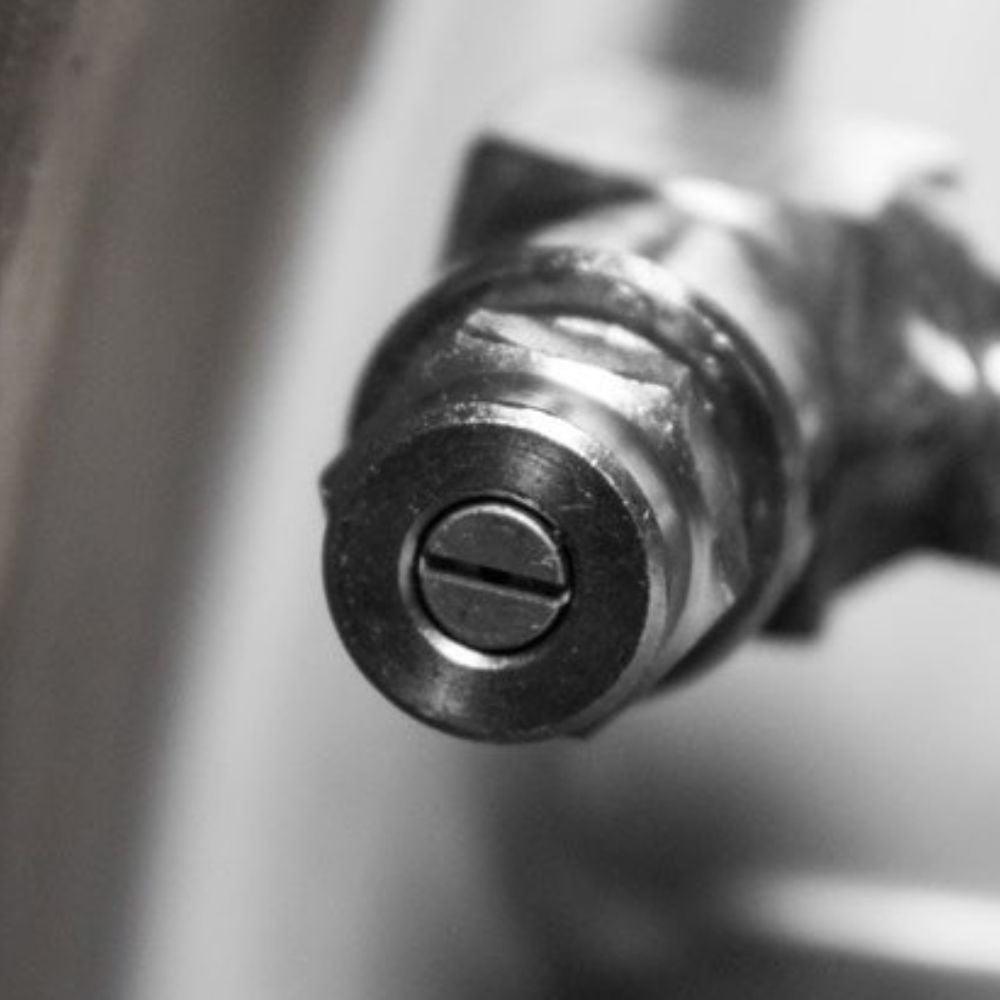

- 2x 25° nozzles, 025, 1/4" (Please refer to the nozzle size chart to determine which nozzle sizes are required for your machine)
- Inlets: M22M, 3/8" NPTF and 3/8" BE / AR2 quick release
KEEP BEARINGS PROTECTED!
Make sure you keep the bearings protected and increase the longevity of your machine with our Premium Lithium Complex Grease.
Excellent water washout resistance. Ideal for use with flat surface cleaners.
- NLGI grade 2
- 400g cartridge
- Multi-purpose applications
- -20° to 150°C working temperature
- Excellent water washout resistance
- Ideal for flat surface cleaners
USING YOUR WHIRAWAY?
During operation, should you experience a build-up of small stones or other foreign material within the cover, we recommend that you simply tip the cleaner on its side at 45° which should expel any foreign materials. This will give longer life to your tips, swivel arm, nozzles, and brush skirt (if applicable).

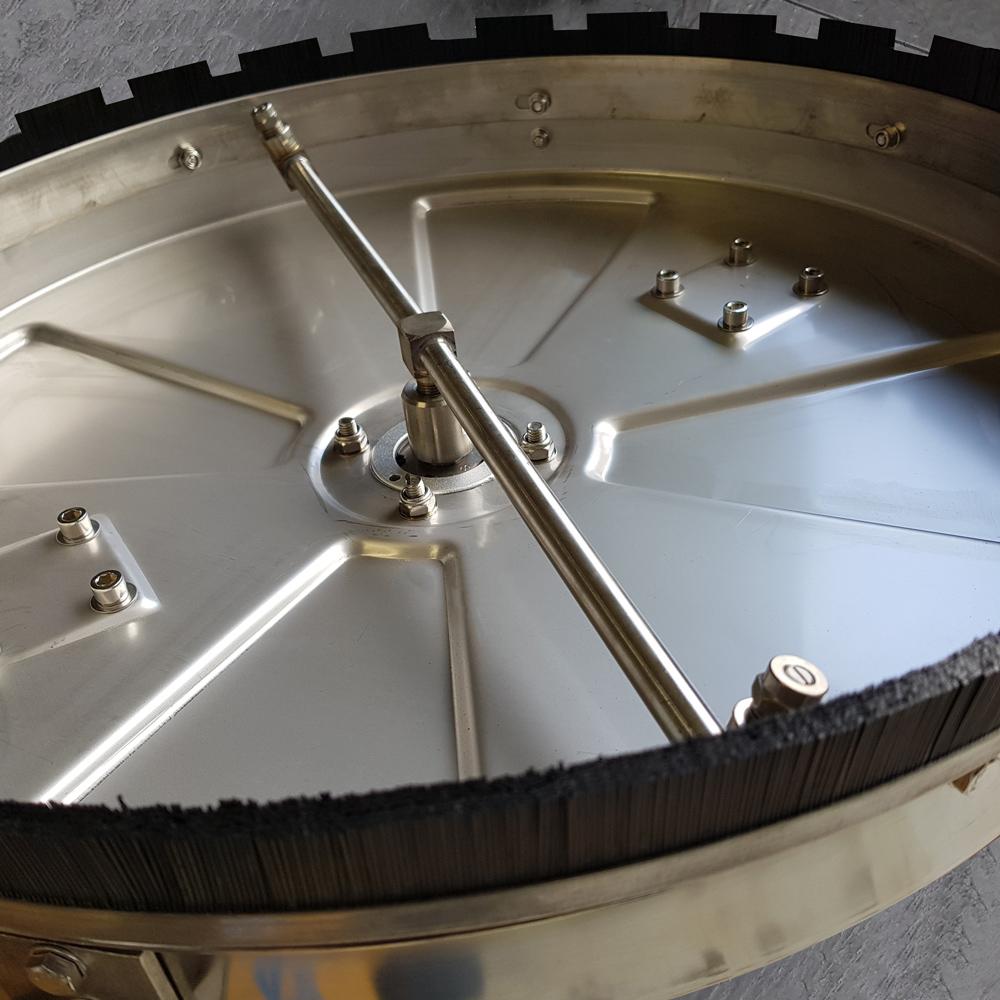

The tips that have been installed on your surface cleaning system permit the use of your cleaner with a pressure washer producing up to 7 GPM at 4000 PSI. Periodically check the tips to ensure they are not clogged by dirt or other matter as this can cause the rotary arm to stop spinning, leading to missed areas on the surface being cleaned.
It is important that you maintain a continuous motion while operating the Whirlaway to ensure an even clean. The factory sets the height of your rotary head from the ground based on peak performance. If you choose to lower or raise the height of the head, you may do so by adding or eliminating the included spacers. Please ensure that your rotary head is adjusted to maintain a minimum of 1” clearance between the spray tips and the surface being cleaned. Note that lowering the head too far may result in the rotary arm hitting the surface and damaging it.
While operating your surface cleaning system, please ensure that the nylon brush skirt remains in contact with the surface being cleaned. Do not operate on overhead surfaces. We strongly recommend that safety goggles, gloves, and work boots be worn when operating a Whirlaway. Keep your hands and feet away from the high pressure, high speed rotating arm that is protected by the plastic cover.
Should your surface cleaner not be used for long periods of time, it is recommended that you remove the hose from the top of the rotary head and use a vegetable oil to lubricate the swivel head’s internal parts. Manually turn the rotary arm to allow lubrication of all internal parts before storing.
